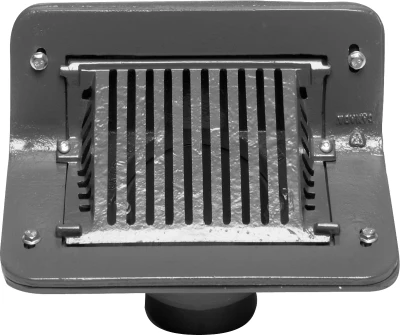

Parapet/Scupper Drain

  • Drains for sidewall roof installation
  • Furnish and install the Portals Plus Scupper Drain at all drain openings as shown on drawings.

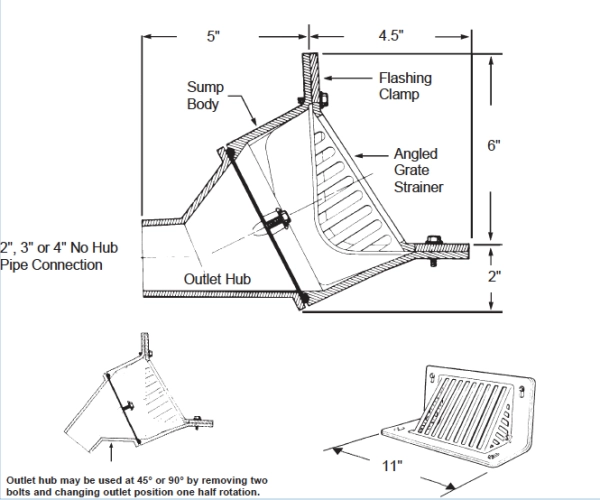

  • Scupper Drain consists of a removable epoxy coated cast aluminum intregral flashing clamp with angled grate, with a free area of not less than 17.60 sq. in
  • A drain sump body 6" tall by 11" wide of epoxy coated cast aluminum alloy.
  • All scupper drains shall include a removable cast aluminum alloy no hub outlet connecter extension.
  • Attachment and installation shall be done in accordance with Portals Plus' instructions and the roofing membrane manufacturer's recommendations
  • Available in 2", 3" and 4"
