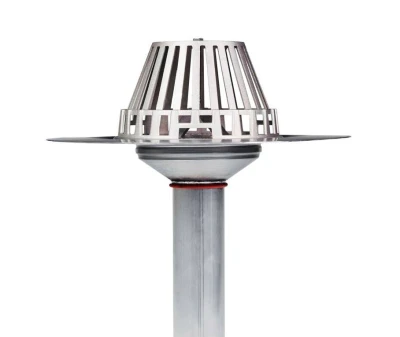

Menzies Clamp-Tite Spun Aluminum Drain

Clamping ring bolts down into compression fit mounting ring.
Stainless steel screw fastens die-cast aluminum strainer.
No vertical studs to interfere with membrane.
Lower clamping ring mount is embedded in the drain bowl. No bolts penetrating drain body.
Cast aluminum strainer.
All fasteners are stainless steel.
Stocked in insert sizes 2″ (51mm), 3″ (76mm), 4″ (102mm), 5″ (127mm) and 6″ (152mm).
Listed to meet Canadian and U.S. standards by QAI. Meets CSA B79 and ASME A112.6.4.
For complete seal assurance this product works best when used with Menzies Blue Drain Seal.
Also available as No Hub outlet model.
Also available in TPO Direct Weld™.
Longer pipes available.

SIZE	WEIGHT	COATING	PART #
2" (1 3/4" OD)	3.70lbs		300-3390
2" (1 3/4" OD)	3.70lbs	TPO	300-3390TPO
3" (2 3/4" OD)	3.95lbs		300-3395
3" (2 3/4" OD)	3.95lbs	TPO	300-3395TPO
4" (3 3/4" OD)	4.00lbs		300-3400
4" (3 3/4" OD)	4.00lbs	TPO	300-3400TPO
5" (4 3/4" OD)	5.00lbs		300-3401
6" (5 3/4" OD)	6.00lbs		300-3402
