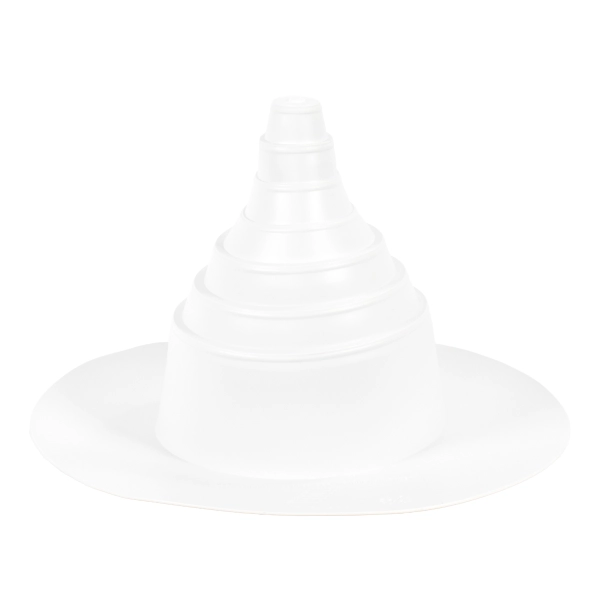

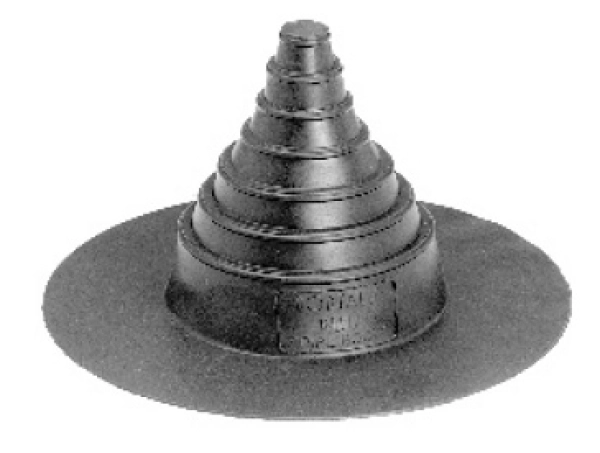

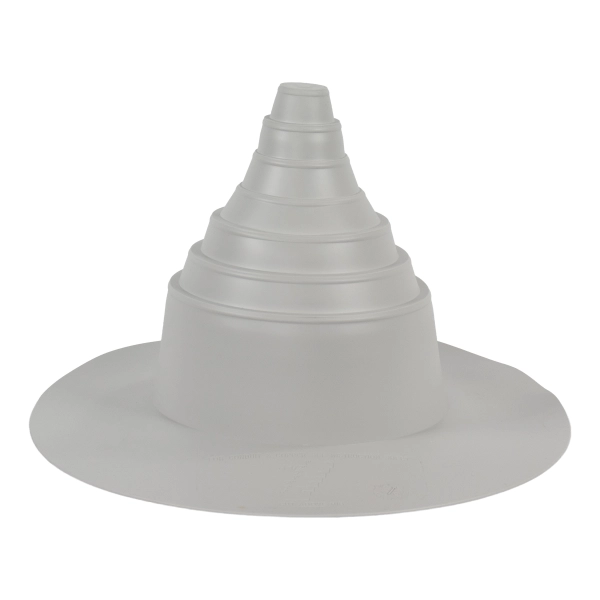

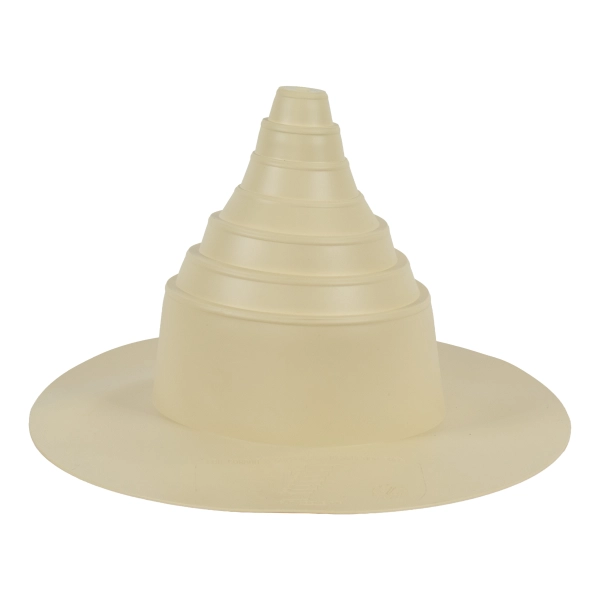

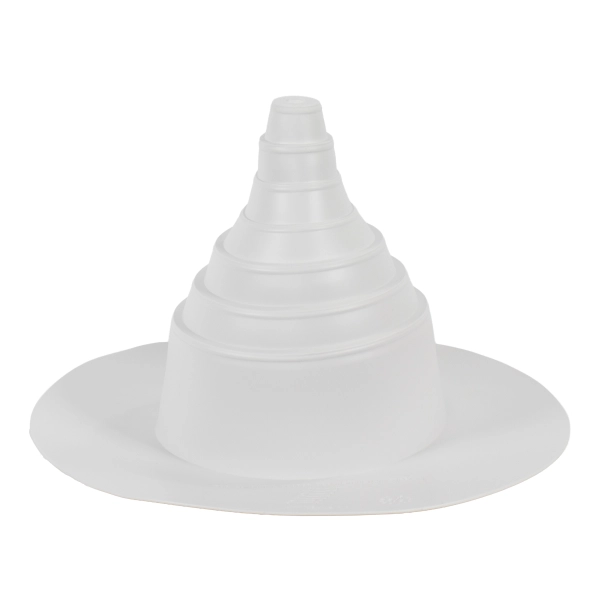

Medium Pipe Boot
Ensure a watertight seal at every roof penetration under 6 inches in diameter with the Portals Plus Medium Pipe Boot. Designed for durability and versatility, this pipe boot provides superior protection and longevity for your roofing system.
Product Features:
-
Constructed with a 60 mil EPDM or NEOPRENE compression-molded body
-
Includes a 70 mil PVC (Polyvinyl Chloride) or TPO (Thermoplastic Olefin) injection-molded base
-

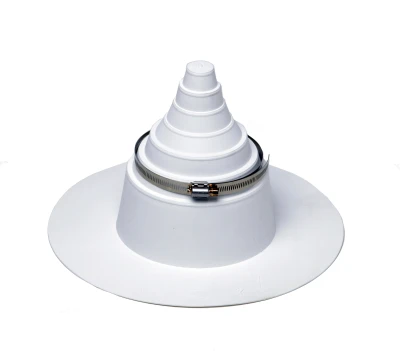

Equipped with Portals Plus’ signature Snaplock Clamp for a secure fit
Versatile Application:
-
Use Portals Plus Adapters for sealing square tubing, angle iron, or round penetrations smaller than 1 inch in diameter
-
Available in white or black to suit your roofing needs
Installation:
-
Install according to Portals Plus Installation Instructions and the roofing membrane manufacturer's specifications to ensure optimal performance
- Furnish and install the Portals Plus Medium Pipe Boot at all points where any projection penetrates the roof system, and is less than 6" in diameter.
- The Medium Pipe Boot shall include 60 mil EPDM or NEOPRENE compression molded body and shall include 70 mil PVC (Polyvinyl Chlo-ride) or TPO (Thermoplastic Olefin) injection molded body.
- The Medium Pipe Boot shall also include Portals Plus' Snaplock Clamp.
- Whenever necessary utilize Portals Plus Adapters to seal to square tubing and angle iron and for round penetrations less than 1" in diameter.
- Use white or black as necessary.
- Attachment of Medium Pipe Boot to roof system shall be done in accordance with Portals Plus Installation Instructions and the roofing membrane manufacturer's requirements.
| Part # | Description | Qty/Ctn |
|---|---|---|
| 42110 | Medium-BLACK EPDM 1"-6" | 10 |
| 42140 | Medium-WHITE EPCM 1"-6" | 10 |
| 43170 | Medium-BLACK Neoprene 1"-6" | 10 |
| 46209 | Medium-WHITE TPO 1"-6" | 10 |
