10 GA galvanized bottom spreader plate welded to angle brackets
1/2" dia. electro-galvanized bolts
Adjusts 12" vertically

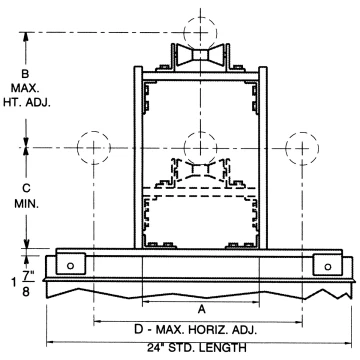

Size Chart
Dimensions
Model No
Pipe Size
A
B
C
D
PMP-8
8"
14 1/8"
12"
12 13/16"
6 1/8"
PMP-10
10"
14 1/8"
12"
13 1/2"
6 1/8"
PMP-12
12"
17 5/8"
12"
15"
5 1/4"
When pipe line is insulated, total outside diameter of pipe and covering should be used to determine size of roller. Larger sizes available- consult RPS
