ER-4A — Equipment Rails for Insulated Decks

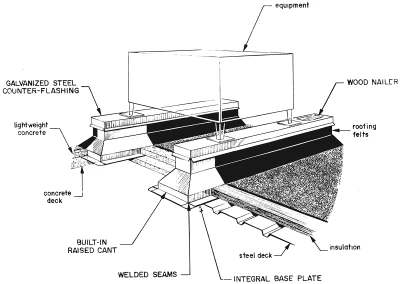

  • The equipment rails shall be 18 gauge galvanized steel, monolithic construction, with integral base plate
  • continuous welded corner seams,factory installed 2 x 4 wood nailer, and including an 18 gauge galvanized counter-flashing complete with screws.

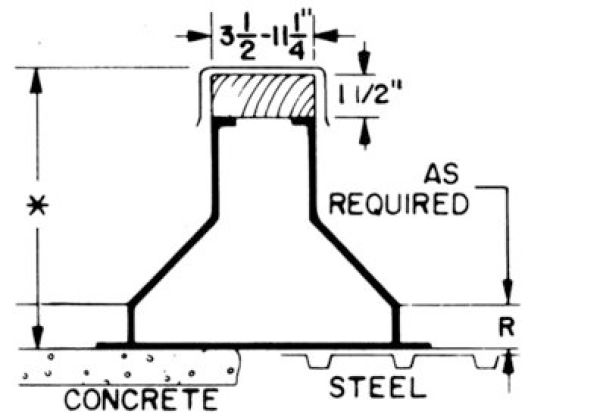

  • On Built-Up or Modified Bitumen Roofing, Steelor Concrete Decks with insulation use style ER-4A with built-in cant, starting 1.5" above baseplate, extended to fully mitered corners with a height of 9.5" overall.
