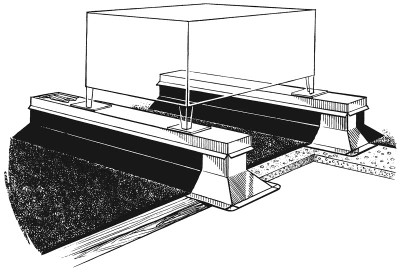

ER-3A — Equipment Rails for Uninsulated Decks

  • The equipment rails shall be 18-gauge galvanized steel, monolithic construction, with integral base plate
  • Continuous welded corner seams, factory installed 2 x 4 wood nailer and including an 18-gauge galvanized counter-flashing complete with screws.

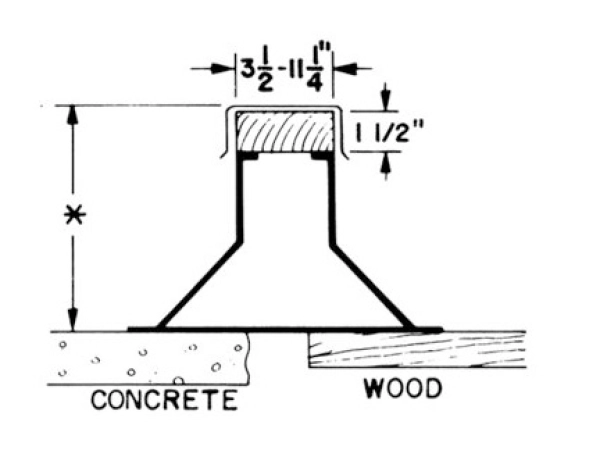

  • On Built-Up or Modified Bitumen Roofing, Concrete, or Wood Decks without insulation use style ER-3A with built-in cant extended to fullmitered corners with a height of 8" overall.
