ER-2A — Equipment Rails for Lightweight Fill, Tapered Insulation, or Single-Ply Roofing

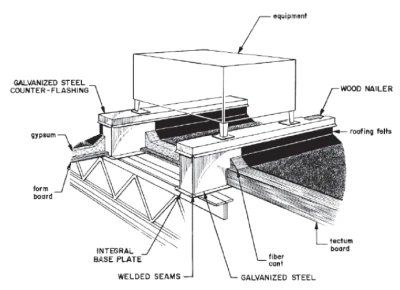

The equipment rails shall be 18-gauge galvanized steel, monolithic construction, with integral base plate
Continuous welded corner seams, factory
Installed 2 x 4 wood nailer on 12" height or 2 x 6 wood nailer on 18" height, and including an 18-gauge galvanized counter-flashing complete with screws

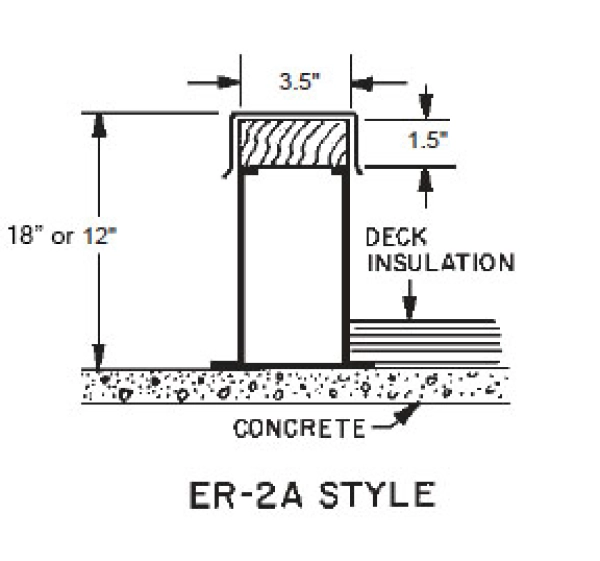

On Single Ply Roofing, Lightweight Fill, or Tapered Insulation use style ER-2A with a height of 12" or 18" overall.

Part #	Description	QTY/CTN
35231	ER-2A RAIL 12" HIGH 2 x 4 NAILER - 3 FEET LONG	1
35241	ER-2A RAIL 12" HIGH 2 x 4 NAILER - 4 FEET LONG	1
35261	ER-2A RAIL 12" HIGH 2 x 4 NAILER - 6 FEET LONG	1
35238	ER-2A RAIL 18" HIGH 2 x 6 NAILER - 3 FEET LONG	1
35248	ER-2A RAIL 18" HIGH 2 x 6 NAILER - 4 FEET LONG	1
35268	ER-2A RAIL 18" HIGH 2 x 6 NAILER - 6 FEET LONG	1

Submittal Data – ER-2A Style
