Deck Mate

Key Features:

• Compression Seal Design: The stepped profile forms a tight seal around Schedule 40 piping, while reinforcing ribs ensure rigidity and support clamp installation.

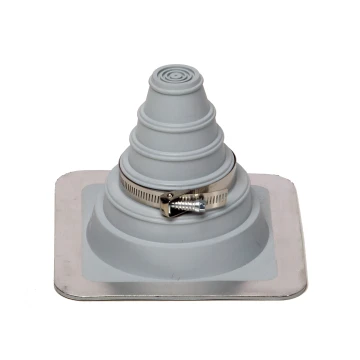

• Reliable Clamping: Designed for use with a stainless steel Snaplock Clamp, critical for maintaining a watertight seal for years.

• No Caulk Needed: Unlike other products on the market, Deck-Mate avoids caulk—a primary sealer discouraged by the National Roofing Contractors Association (NRCA).

• Wide Application Range: Accommodates penetrations from 0.125" to 26" in diameter and adapts to any corrugated metal roof configuration.

• Flexible Aluminum Base: Features a dead-soft aluminum flange that conforms to roof irregularities, contours, and varying pitches.

• Two Styles Available:

  • Standard – for typical roof penetrations

  • Retrofit – for pipe applications where disconnecting is not possible

• Material Options:

  • EPDM – Serviceable from -60°F to +270°F

  • High-Temp Silicone – Serviceable from -100°F to +500°F

  • Both materials are UV- and ozone-resistant

Specifications:

• Furnish and install at all metal roof or wall penetrations 26" or less in diameter

• Includes a 1" wide corrosion-resistant flexible aluminum base

• Comes with Portals Plus' Snaplock Clamp (excluding model DM0)

• Flashings for metal roof and wall systems
• The Deck-Mate flashing incorporates a stepped profile which creates a compression seal between the schedule 40 piping and the flashing.
• Designed with proper reinforcing ribs to allow the flashing to maintain rigidity and the shape of the product. By combining the stepped profile and the reinforcing ribs, the product will properly accommodate the use of a stainless steel clamp. The clamp is crucial in maintaining a water-tight seal for years to come.
• All other products on the market incorporate the use of caulk to seal the penetration. The National Roofing Contractor Association states, in their better roofing practices, that caulk should never be used as a primary sealer of a penetration.
• The Deck-Mates are designed to accommodate projections from .125"-26" in diameter and work in conjunction with any configuration of corrugated metal roof.
• The product is engineered to incorporate a dead soft aluminum flange that bends to any contour, roof irregularity or pitch.

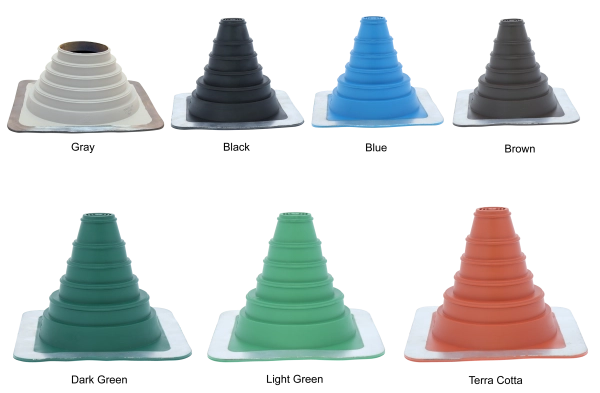

• Deck-mate is available in two styles, the standard for normal penetration, and Retrofit for piping that can not be disconnected.
• Flashings are also available in two materials, standard EPDM, and high temperature Silicone.
• Furnish and install at all points where 26" or less pipes penetrate the metal roof and wall system.
• The Deck-Mate shall be EPDM or Silicone (high temperature) compression molded rubber.
• Material shall have a serviceable temperaturerange of -60 F to +270 F for EPDM and -100 F to +500 F for Silicone. Both products will be resistant to ozone and ultraviolet.
• Unit shall have 1" wide corrosion resistant flexible aluminum base. The Deck-Mate shall also include Portals Plus' Snaplock Clamp (except DM0).
