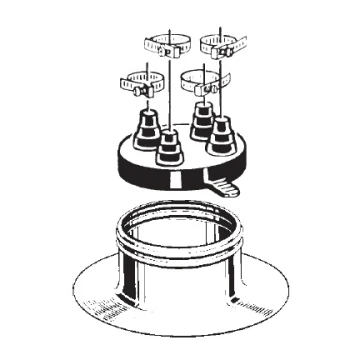

Alumi-Flash Standard with C-412 Cap

  • Furnish and install the Portals Plus Standard Alumi-Flash at all points where up to four pipes 1" - 2" in diameter penetrate the roof.

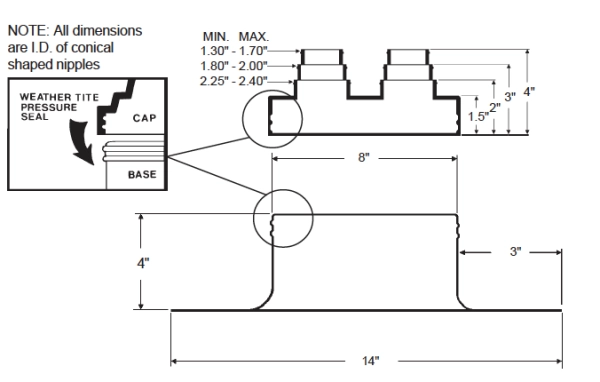

  • The Standard Alumi-Flash shall include a .060" spun aluminum base unit with a height of 4" and a base diameter of 14".
  • The  8" collared opening shall have two beaded sealing rings roll formed into the top edge.
  • An EPDM (Ethylene Propylene Diene Monomer) compression molded cap model C-412 shall be utilized.
  • All Caps shall include Portals Plus' stainless steel Snaplock Clamps.
  • Attachment and installation of the Standard Alumi-Flash shall be done in accordance with Portals Plus' instructions and the roofing membrane manufacturer's recommendations.
