ABS Drain and Plus Pack

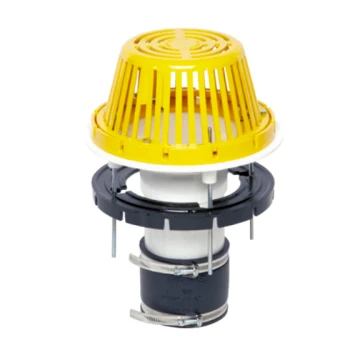

The ABS Roof Drain with Plus Pack features a UV-stabilized polyethylene or cast aluminum dome strainer, epoxy-coated aluminum gravel guard and clamping ring, injection-molded ABS drain body with 6" Schedule 40 extension, cast aluminum underdeck clamp, and flexible EPDM connector with stainless steel clamps. Available in 3", 4", and 6" sizes.

ABS Roof Drains

Part #	Description	Will Fit I.D.	QTY/CTN
61331	ROOF DRAIN W/ PLASTIC DOME	3	1
61431	ROOF DRAIN W/ ALUMINUM DOME	3	1
61341	ROOF DRAIN W/ PLASTIC DOME	4	1
61441	ROOF DRAIN W/ ALUMINUM DOME	4	1
61361	ROOF DRAIN W/ PLASTIC DOME	6	1
61461	ROOF DRAIN W/ ALUMINUM DOME	6	1

ABS Roof Drain Plus Packs

Part #	Description	Will Fit I.D.	QTY/CTN
61531	PLUS PACK W/ PLASTIC DOME	3	1
61631	PLUS PACK W/ ALUMINUM DOME	3	1
61541	PLUS PACK W/ PLASTIC DOME	4	1
61641	PLUS PACK W/ ALUMINUM DOME	4	1
61561	PLUS PACK W/ PLASTIC DOME	6	1
61661	PLUS PACK W/ ALUMINUM DOME	6	1

Key Features:

Dome Strainer: Molded UV-stabilized polyethylene or cast aluminum
Gravel Guard & Clamping Ring: Epoxy-coated cast aluminum
Drain Body: Injection molded UV-stabilized ABS with 6" schedule 40 extension
Underdeck Clamp: Cast aluminum
Flexible Connector: EPDM with stainless steel clamps
Sizing: Available in 3", 4", and 6" sizes

Furnish and install the ABS with Plus Pack at all drain openings as specified on drawings.

Attach and install in accordance with Portals Plus' instructions and the roofing membrane manufacturer's recommendations.

Installation Instructions — Plus Pack

Submittal Data — ABS and PVS Plus Pack Submitall

Part#	Description	Will Fit I.D.	QTY/CTN
61331	ROOF DRAIN W/ PLASTIC DOME	3	1
61431	ROOF DRAIN W/ ALUMINUM DOME	3	1
