Pipe Portal with C-126 Cap

Pipe Portal with C-126 Cap

Assets/Details

Submittal Data (61 KB, PDF)
  • Furnish and install the Portals Plus Pipe Portal System as manufactured by Portals Plus, Inc., at all points where one penetration 2" -  6" in diameter penetrates the roof.
  • The Pipe Portal shall include an 18 gauge galvanized roof curb model RC-___A with integral base plate, continuously welded corner seams, factory-installed wood nailer, and 1.5" 3lb. rigid fiberglass insulation.
  • The Pipe Portal shall be furnished with a laminated, acrylic coated, ABS plastic curb cover with prepunched holes and molded sealing ring on an 8" collared opening.
  • An EPDM (Ethylene Propylene Diene Monomer) compression molded cap model C-126 shall be utilized.
  • All Caps shall include Portals Plus' stainless steel Snaplock Clamp.
  • Attachment and installation of the Pipe Portal shall be done in accordance with Portals Plus' instructions and the roofing membrane manufacturer's recommendations.

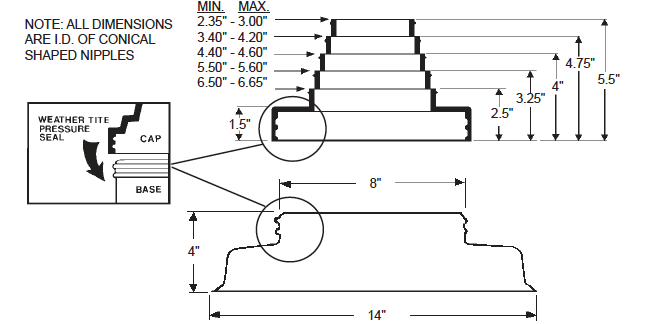

Pipe Portal with C-126 Cap Dimensional

Part #Description QTY/CTN
32005SMALL COVER & CAP W/ C-126 BLACK CAP5
32055SMALL COVER & CAP W/ C-126 WHITE CAP5
