Large Aluminum Vent

Large Aluminum Vent

Assets/Details

Submittal Data (68 KB, PDF)
  • Furnish and install Portals Plus Large Aluminum Vent  at a spacing of one per 1500 square feet.
  • The Aluminum Vent shall be made of.060 spun aluminum with a base flange diameter of 11.5" and a height of no less than 11".
  •  The stand pipe will havea 6.5" base opening and a 4.5" counter flashing rain cap that will be a locking, vandal proof type.
Part #Description QTY/CTN
74014ALUMINUM VENT / (LG) (1-WAY)*4
74034ALUMINUM VENT - (LG) (1-WAY)**4

*FACTORY INSTALLED RAIN CAP

*RAIN CAP SHIPPED LOOSE FOR FIELD INSTALLATION

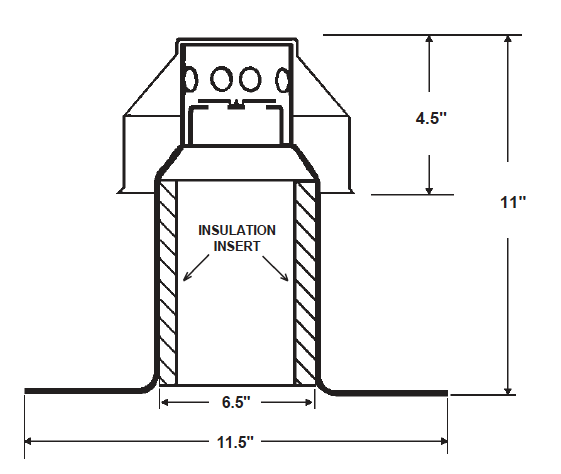

 Large Aluminum Vent Dimensional
