ER-4A Style

ER-4A Style

Assets/Details

Submittal Data (72 KB, PDF)

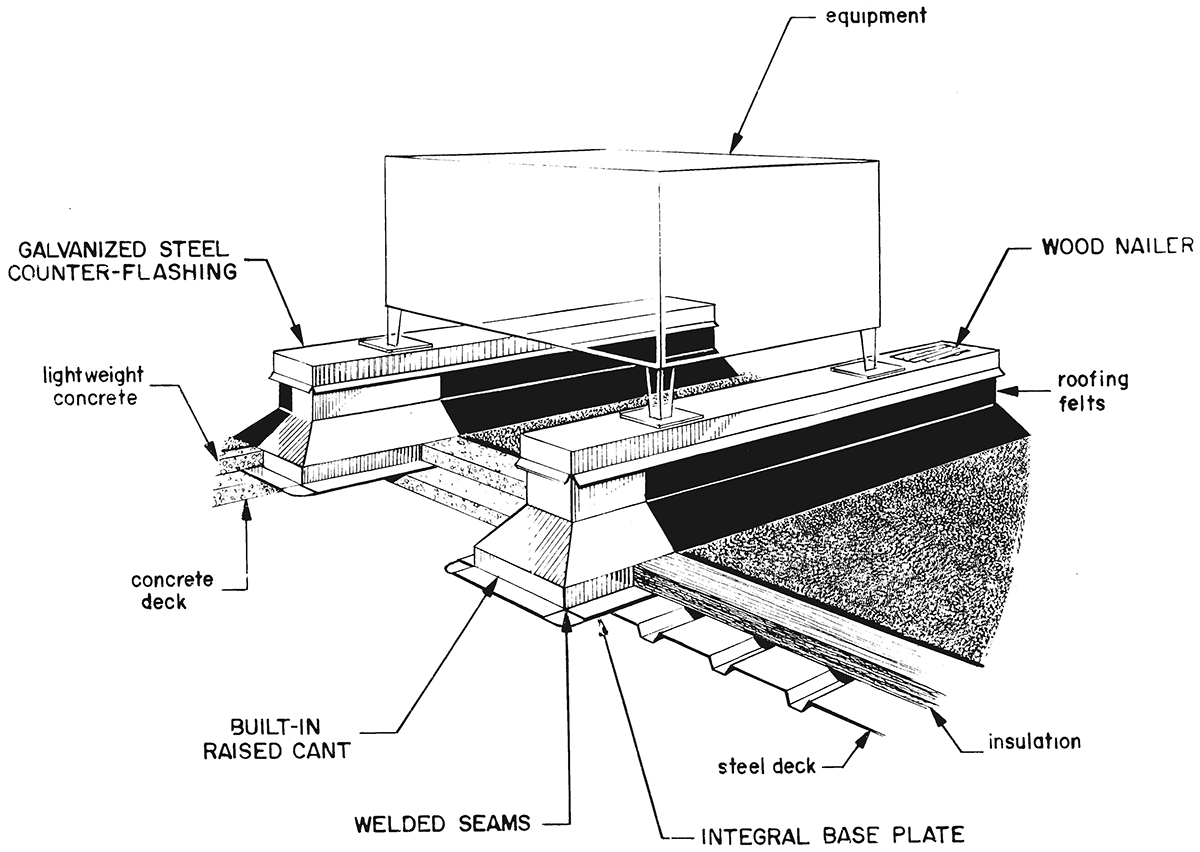

  • The equipment rails shall be 18 gauge galvanized steel, monolithic construction, with integral base plate
  • continuous welded corner seams,factory installed 2 x 4 wood nailer, and including an 18 gauge galvanized counter-flashing complete with screws.
  • On Built-Up or Modified Bitumen Roofing, Steelor Concrete Decks with insulation use style ER-4A with built-in cant, starting 1.5" above baseplate, extended to fully mitered corners with a height of 9.5" overall.
Part #Description QTY/CTN
35431ER-4A RAIL 9 1/2" HIGH x 3 FEET LONG1
35441ER-4A RAIL 9 1/2" HIGH x 4 FEET LONG1
35461ER-4A RAIL 9 1/2" HIGH x 6 FEET LONG1

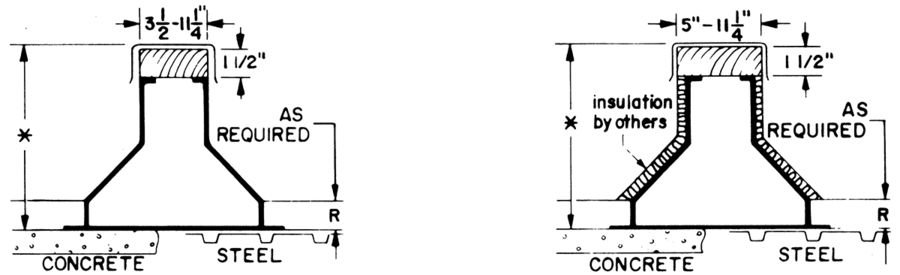

ER-4A Dimensional
